Roofs we've already done.

The ones we'd point you at first.

Every one of these is ours, with the panel, inverter and battery named. If a quote won't tell you what's actually going on your roof, that is worth noticing.

01 Bradley Stoke Solar, battery and backupJuly 2026Eight days on site

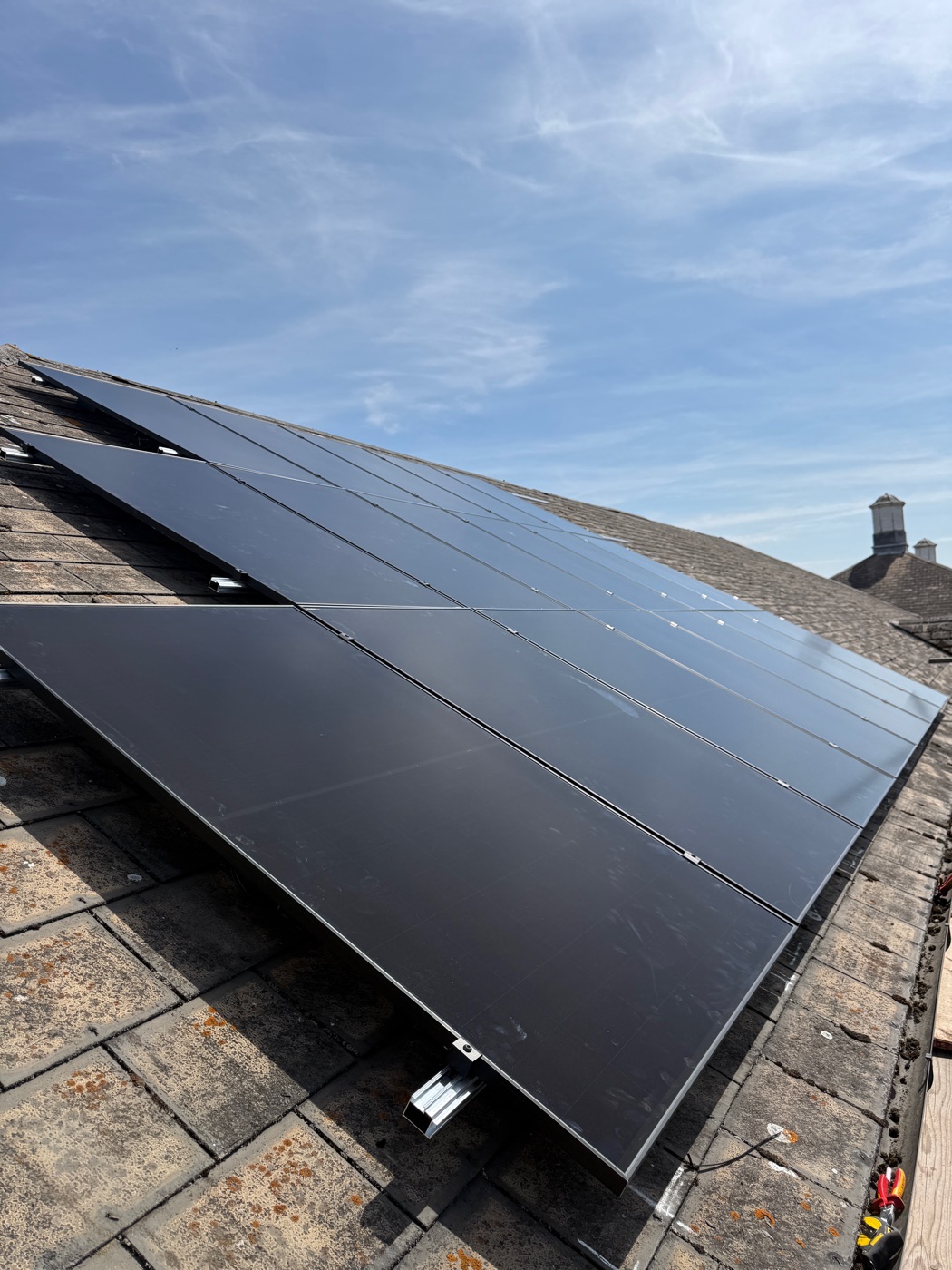

Fig. 1 · Forty-four of them

Twenty-one kilowatts, three phases and a plan for the dark

The one that keeps going in a power cut

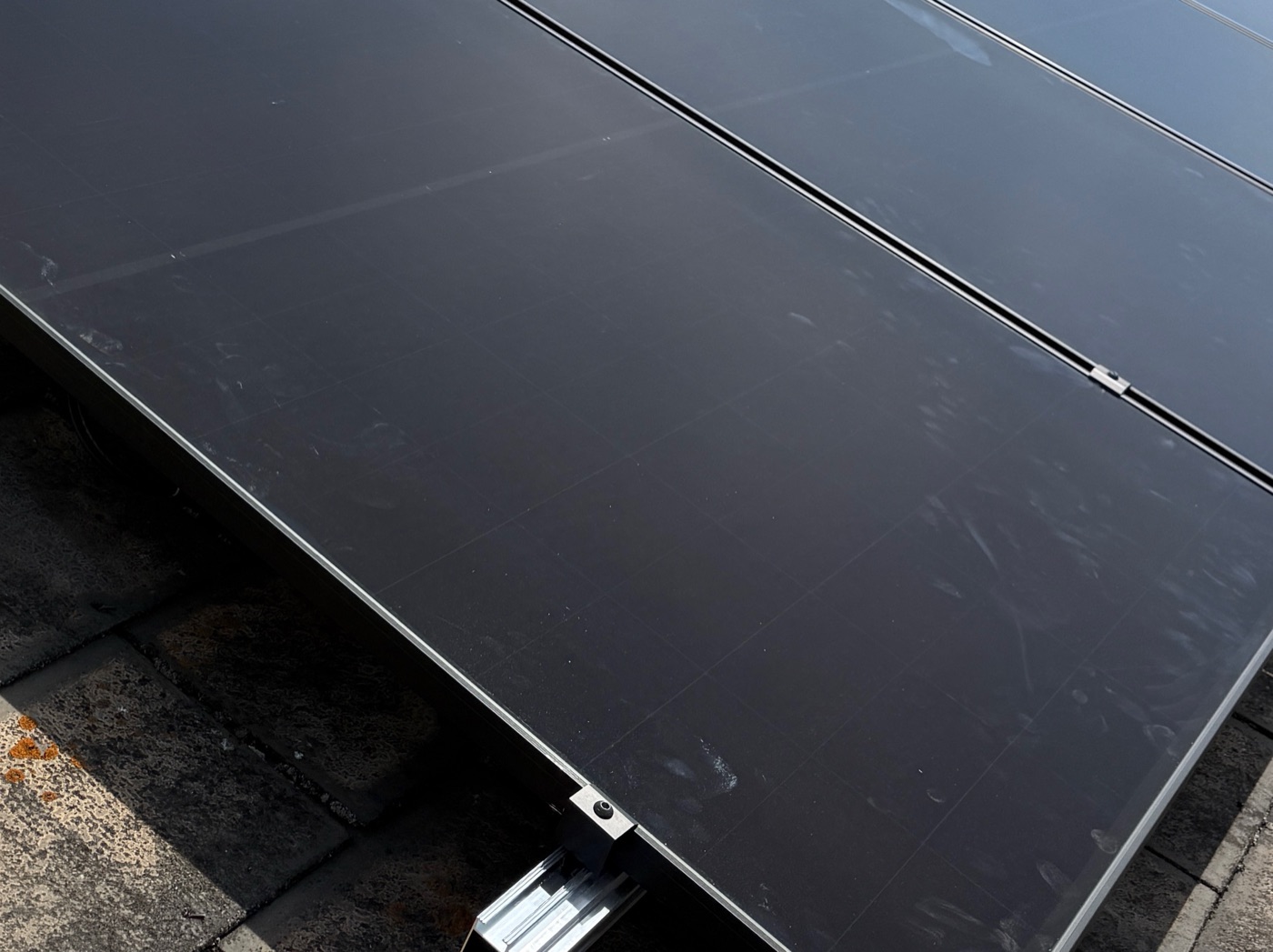

Forty-four panels across a big stone roof, feeding a three-phase hybrid, wired with proper backup built in. Most batteries sit there doing nothing the moment the grid drops. This one runs through a UPS and EPS setup, so the site keeps working while the street waits for the lights to come back.

• 44 Longi 480W panels, 21.1kWp in total
• Ecoflow 15kW three-phase inverter
• 10kWh of battery storage
• UPS and EPS backup, wired to carry the site through an outage

Still on when the street isn'tWired for backup rather than left to trip out, so an outage stops being a closed afternoon.

02 Brabazon, Filton New build retrofitJanuary 2024Two days on site

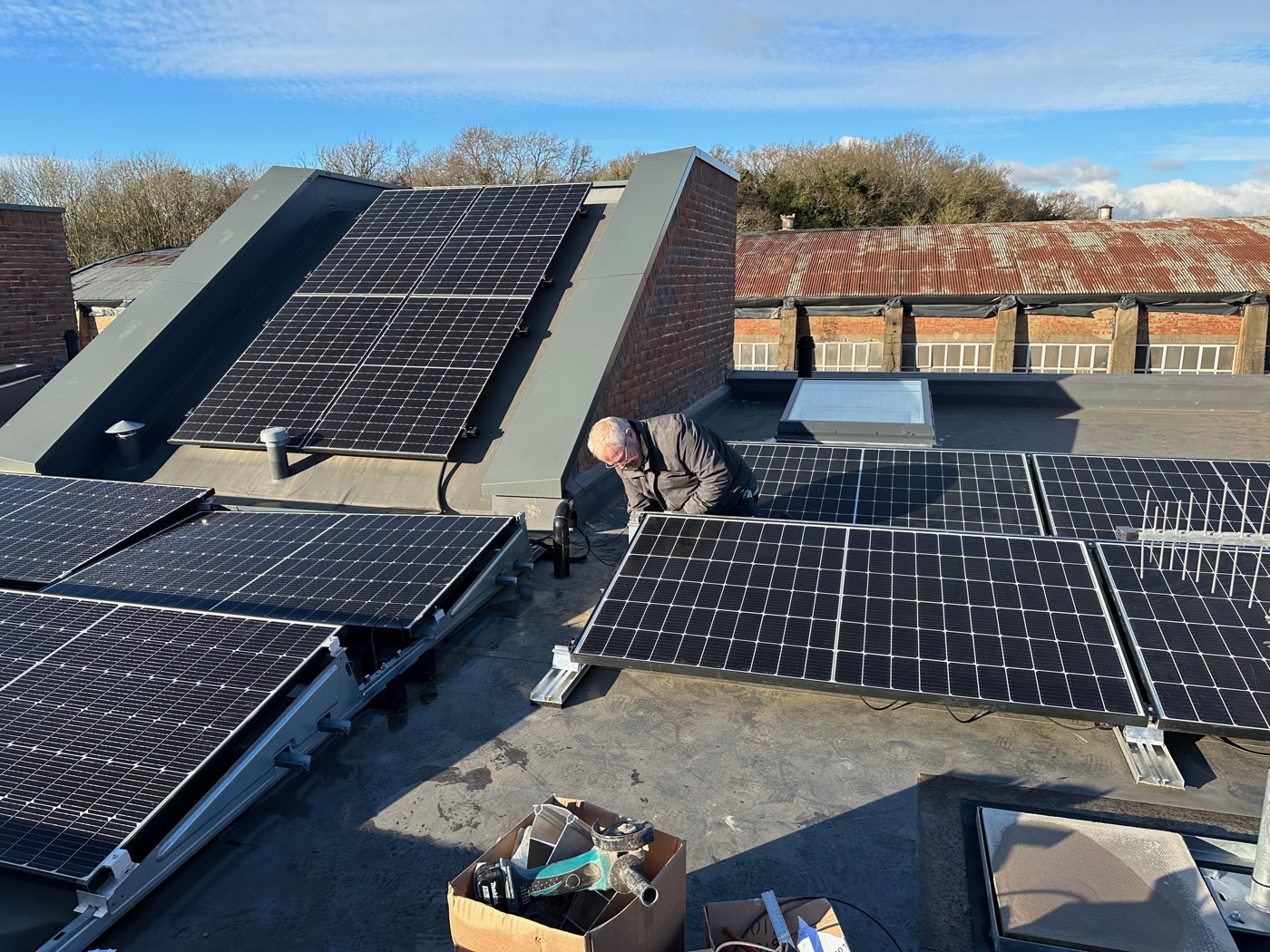

Fig. 2 · The old array and the new one

The developer fitted panels. Nobody fitted a battery.

Making a new build's solar actually pay

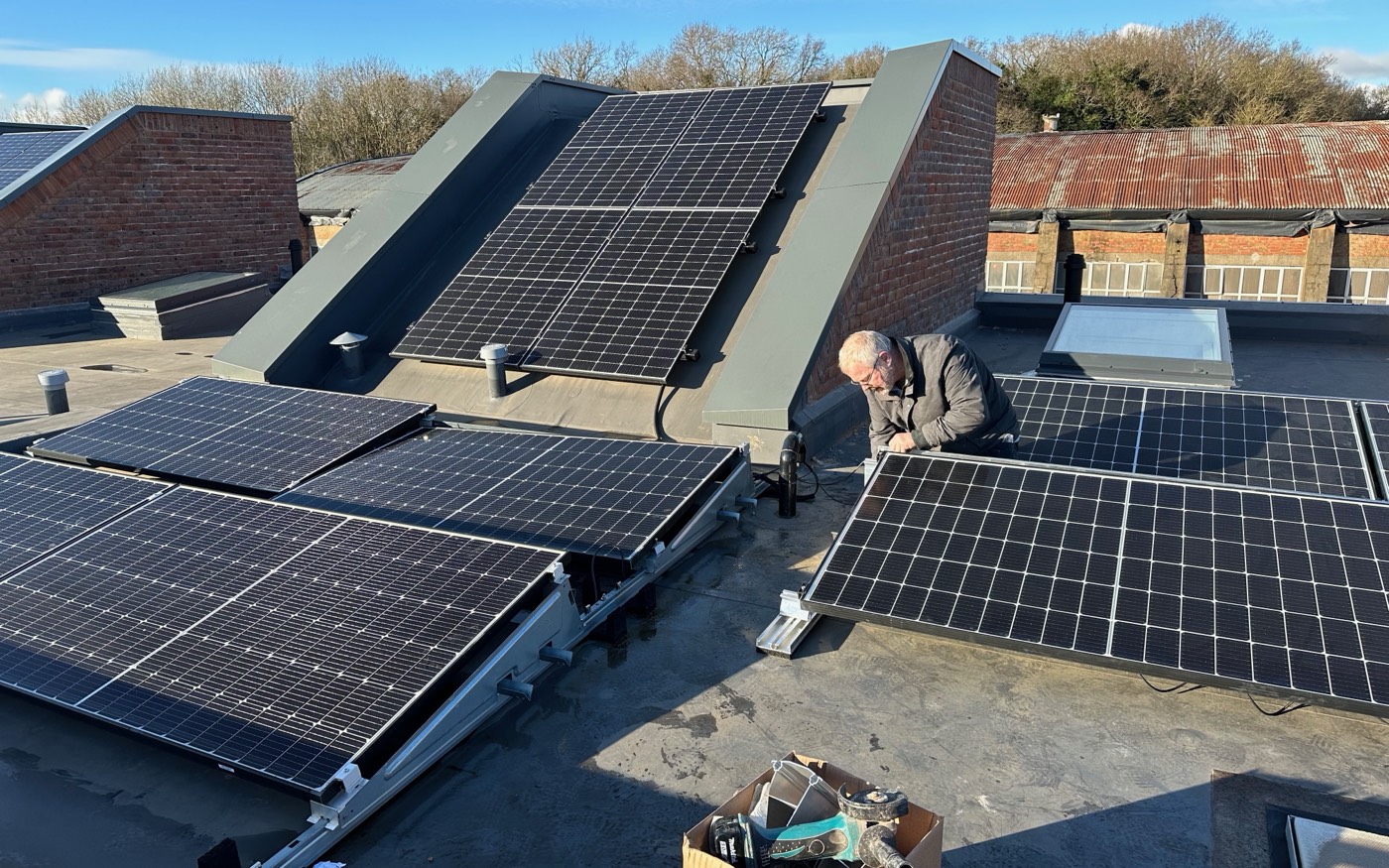

New builds on the Brabazon development arrive with solar on the roof and nowhere to put what it makes, so a bright day mostly goes to the grid for pennies and comes back at teatime at full price. We added a second array on flat-roof frames, wired into the inverter that was already there, then AC coupled a battery to the whole lot.

• Extra panels on a flat-roof mounting system, alongside the original array
• Wired into the existing inverter, so the developer's kit stays put

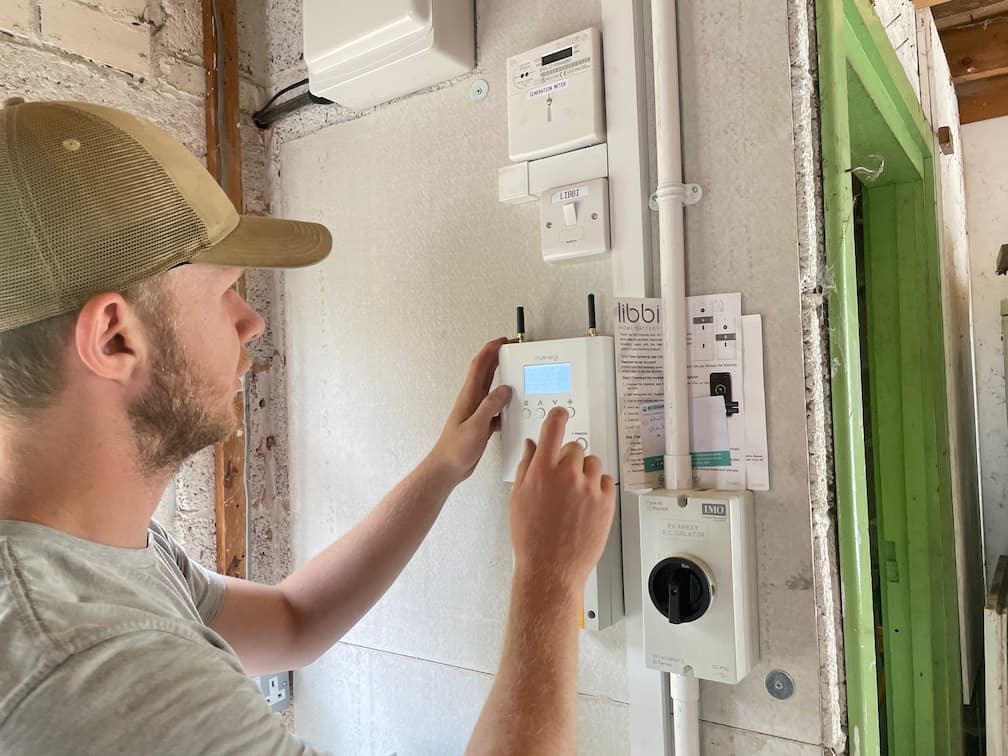

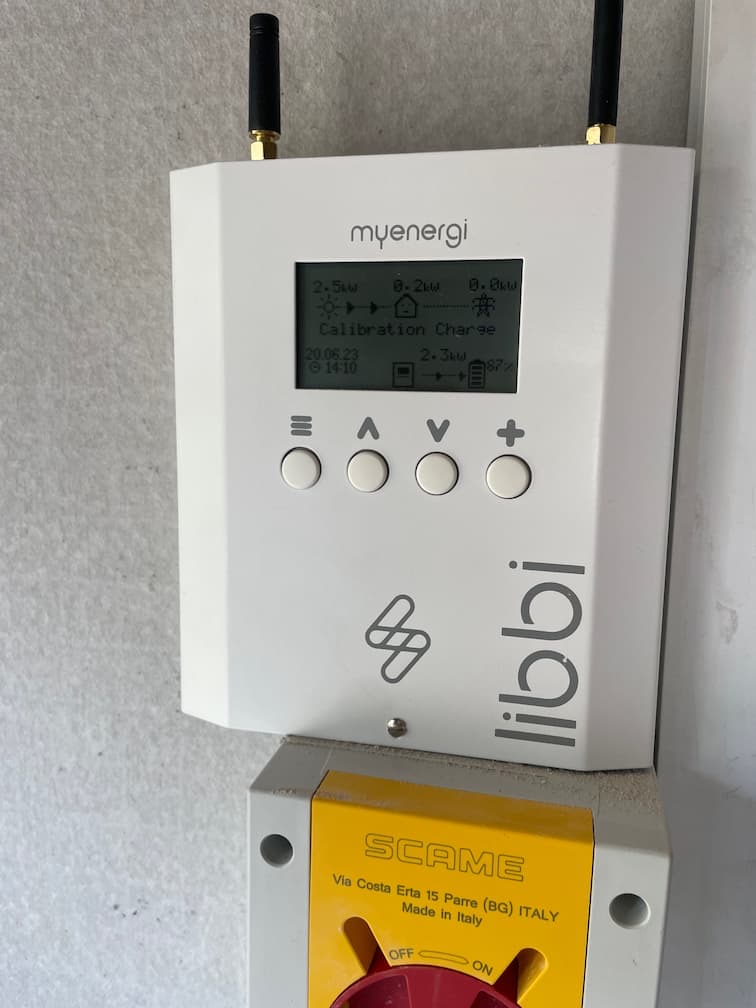

• myenergi Libbi battery storage, 10kWh
• AC coupled, charging from the original panels and the new ones together

AC coupling is the point of this one. It bolts a battery onto a system that already works instead of tearing out a perfectly good inverter, which on a house this new would be an expensive way to solve the wrong problem.

03 Shirehampton Solar and batteryJanuary 2026Four days on site

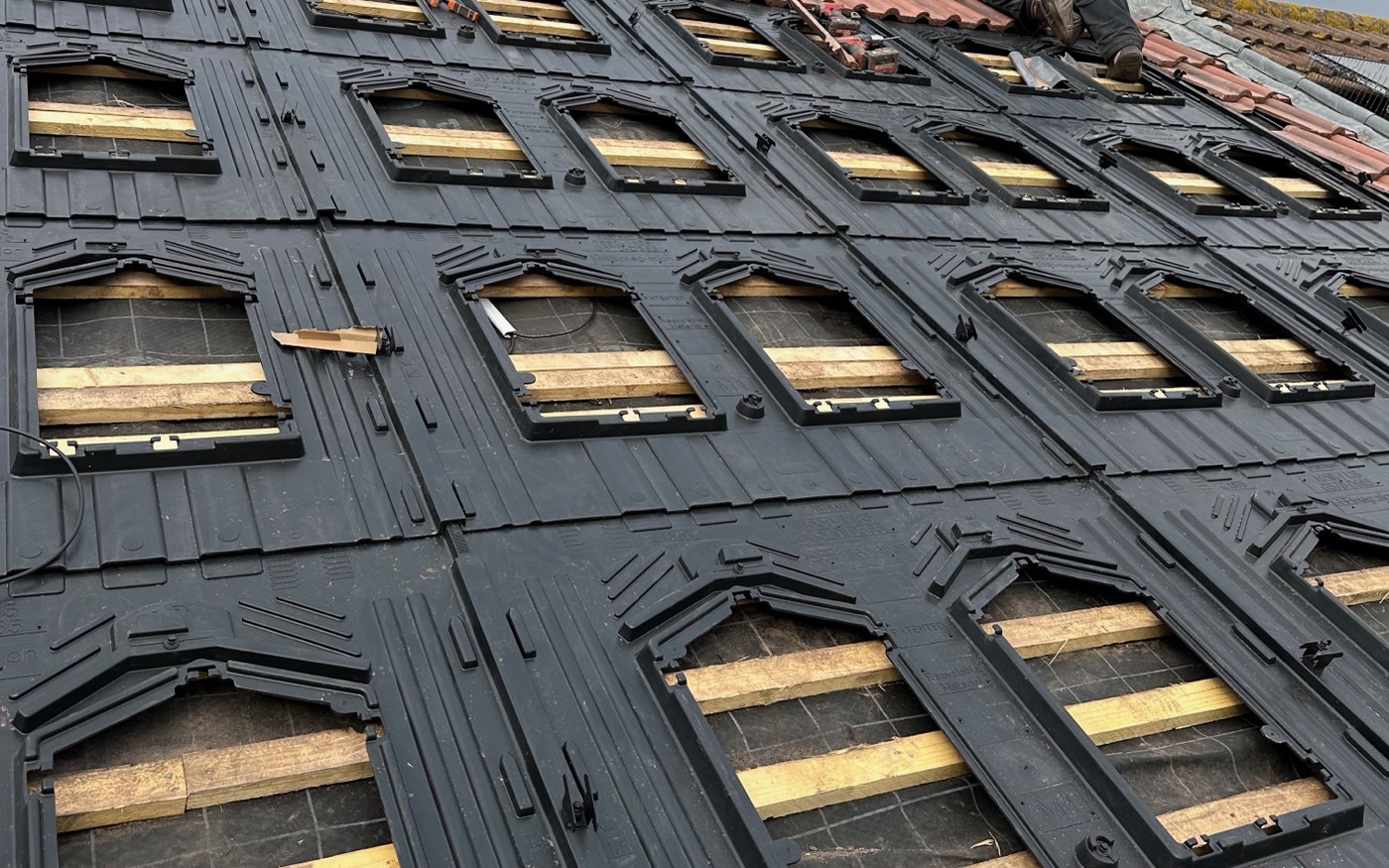

Fig. 3 · Trays before panels

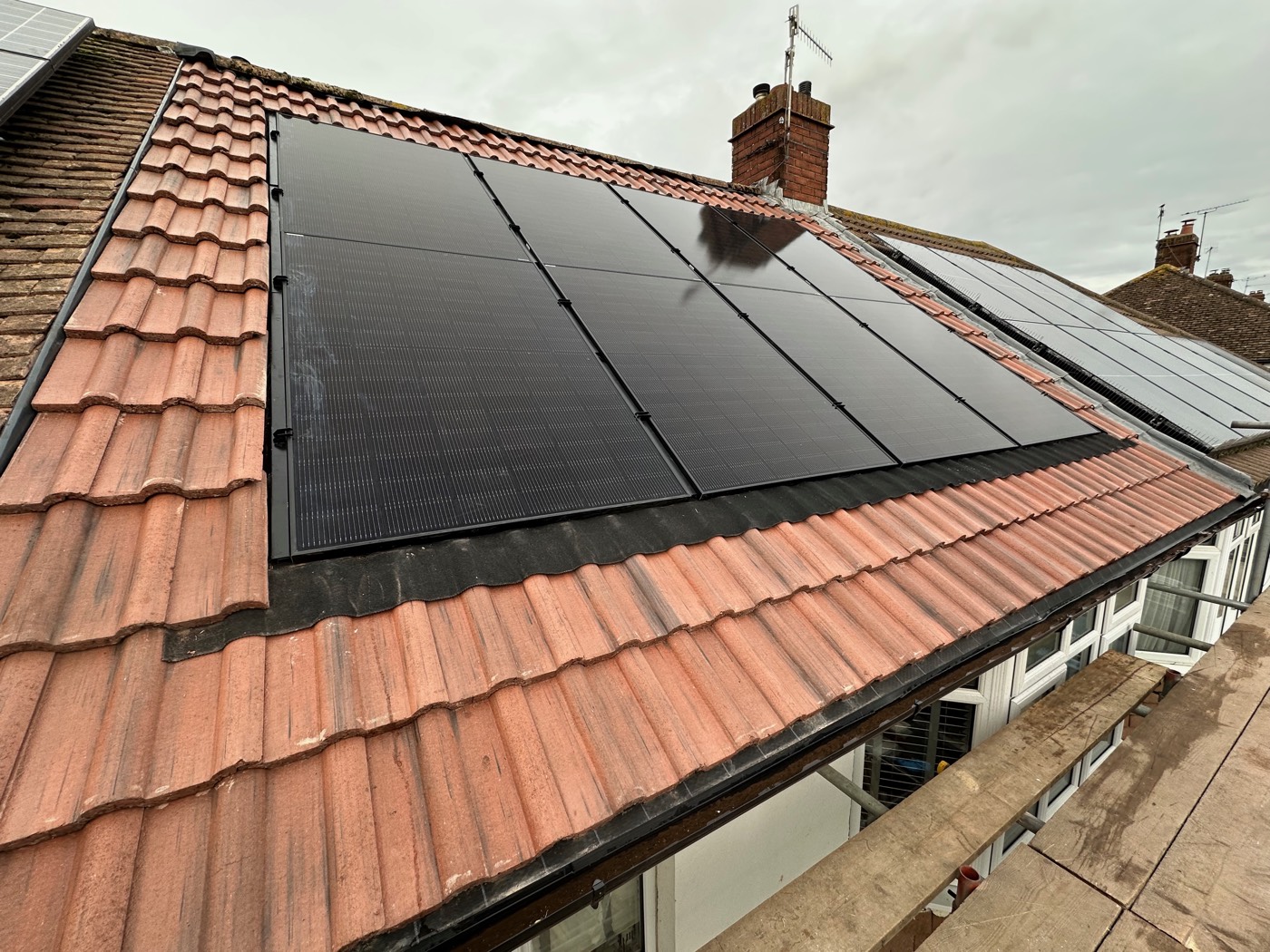

The tiles were coming off anyway

In-roof, because the timing made it cheaper

Sixteen panels across the north and south faces. The north roof was already due to be re-tiled, so instead of buying a roof full of tiles and then covering them over with panels, we set the panels into the roof on GSE trays. The array does the job the tiles would have done up there, and nobody paid twice for the same square metres.

• 16 JA Solar 460W panels, 7.36kWp across two roofs, north and south
• GSE in-roof trays, set flush into the roof rather than sitting on top
• Sunsynk 5kW hybrid inverter
• 16kWh of Fogstar battery storage

A north-facing roof will always generate less than a south-facing one. It earned its place here because the tiles were coming off regardless, which is exactly the sort of thing worth working out before anyone decides where the panels go.

04 Almondsbury Solar and batteryJuly 2026Four days on site

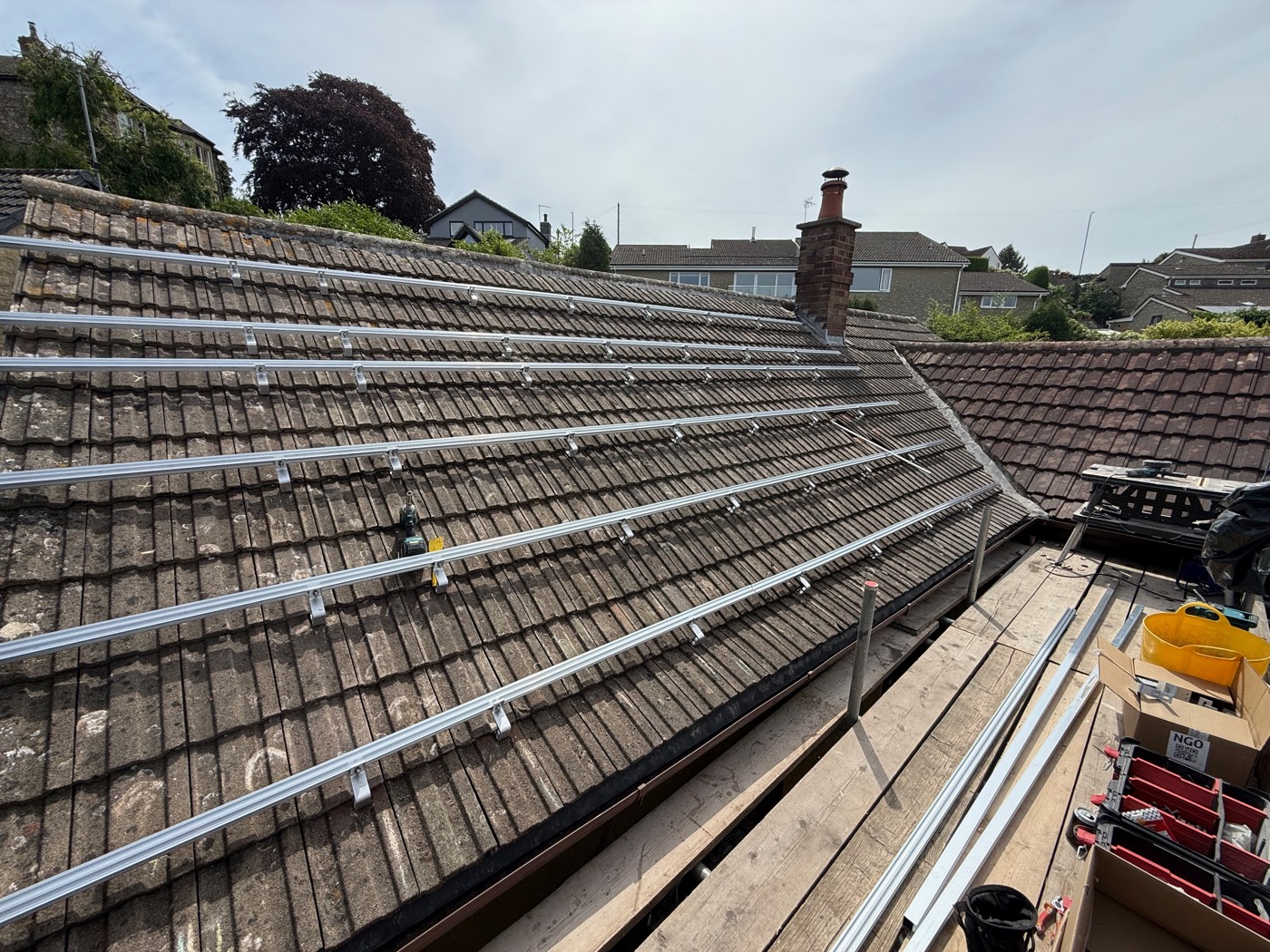

Fig. 4 · Rails down, mesh on

Two pitches, two angles, one system

The one the battery earns its keep on

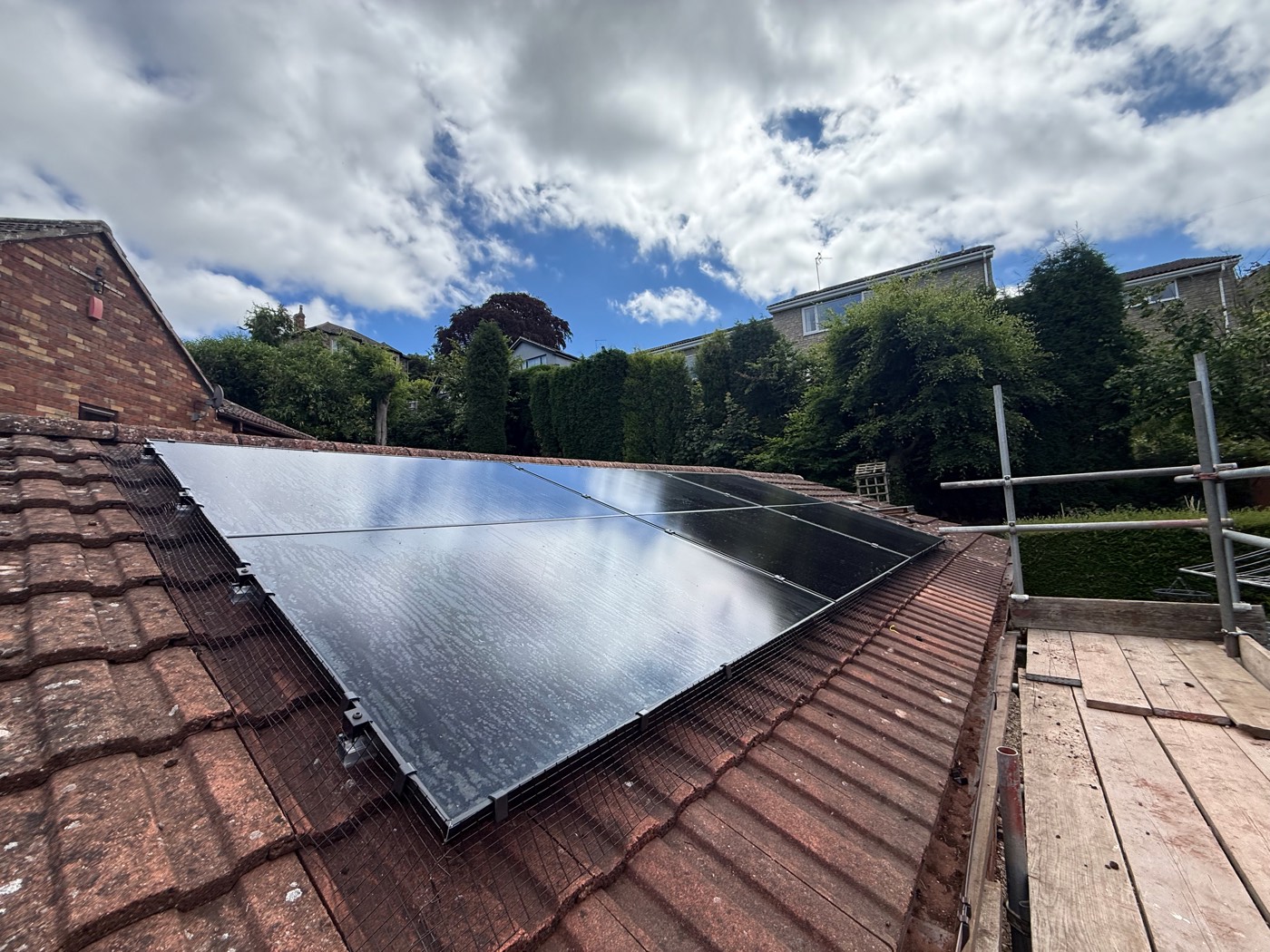

Fifteen panels split across two faces of the roof, nine looking west at a 37 degree pitch and six south-west at 25. Different angles peak at different times, which spreads the generation across the day rather than piling it into one lunchtime lump the house cannot drink. Bird protection went on at the eaves before we left.

• 15 Canadian Solar 455W TOPCon panels, 6.83kWp
• EcoFlow Power Ocean 6kW single-phase hybrid inverter
• 10.2kWh of usable LFP storage, two 5kWh units
• Renusol VS+ mounting, SolaSkirt bird protection, UPS socket by the board

36% to 68%Design estimateSelf-sufficiency without the battery, then with it. The panels alone cover about a third of the year's electricity; the battery takes it to two thirds by saving the daytime surplus for the evening. MCS design figures for this roof, not a measurement.

Everything else we've been up to.

Same detail, less scrolling. Open any of them for the full kit list and what was awkward about it.

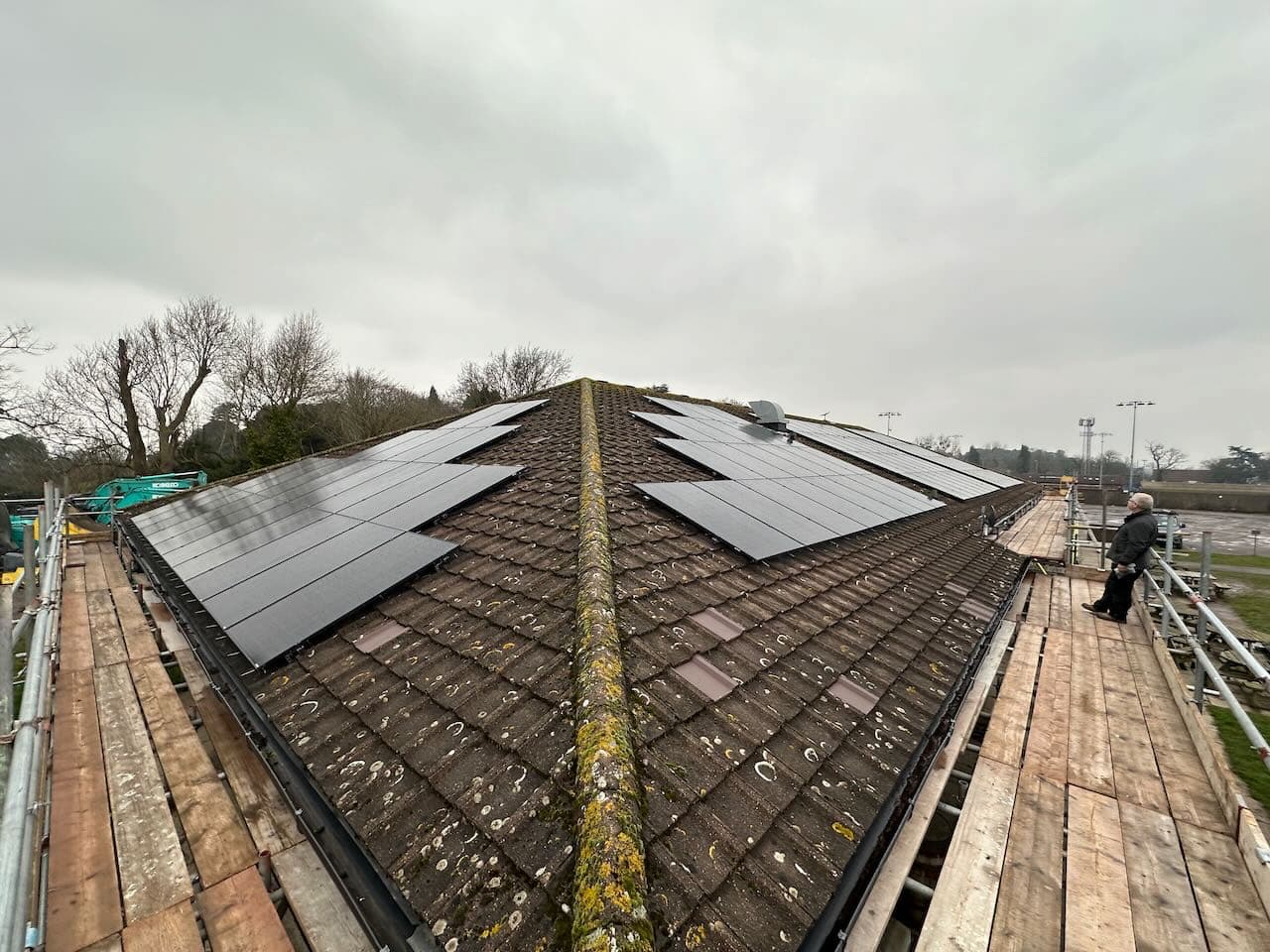

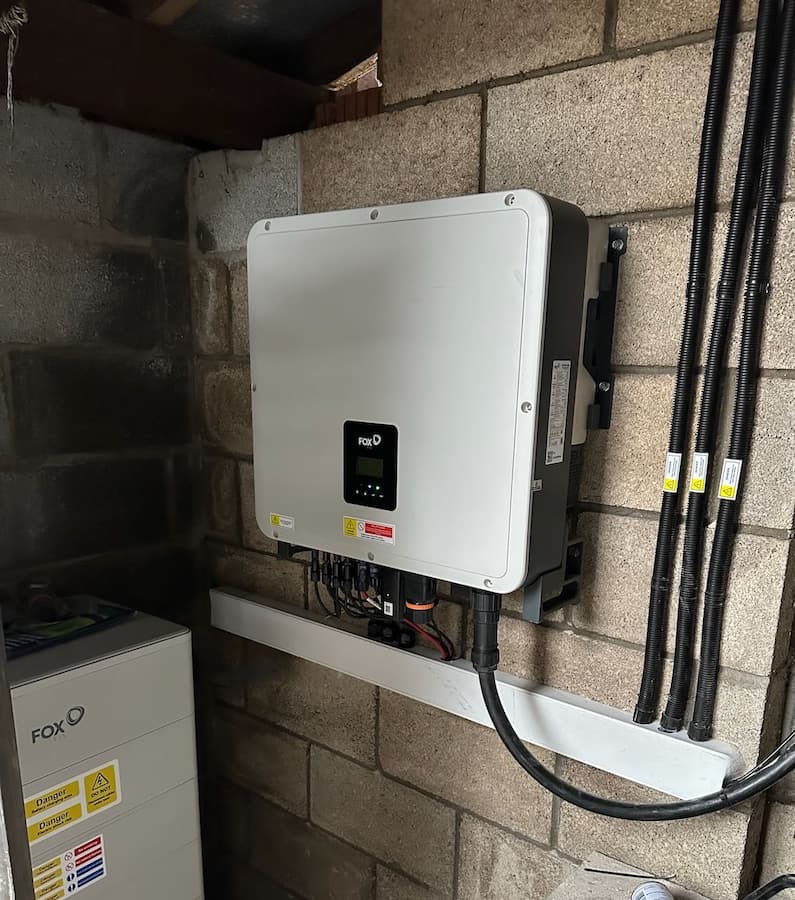

Almondsbury 40kW · 30kWh · three-phase Commercial · January 2025 Full job

Our own roof 5kW · 7.5kWh · split roof Solar and battery · October 2022 Full job

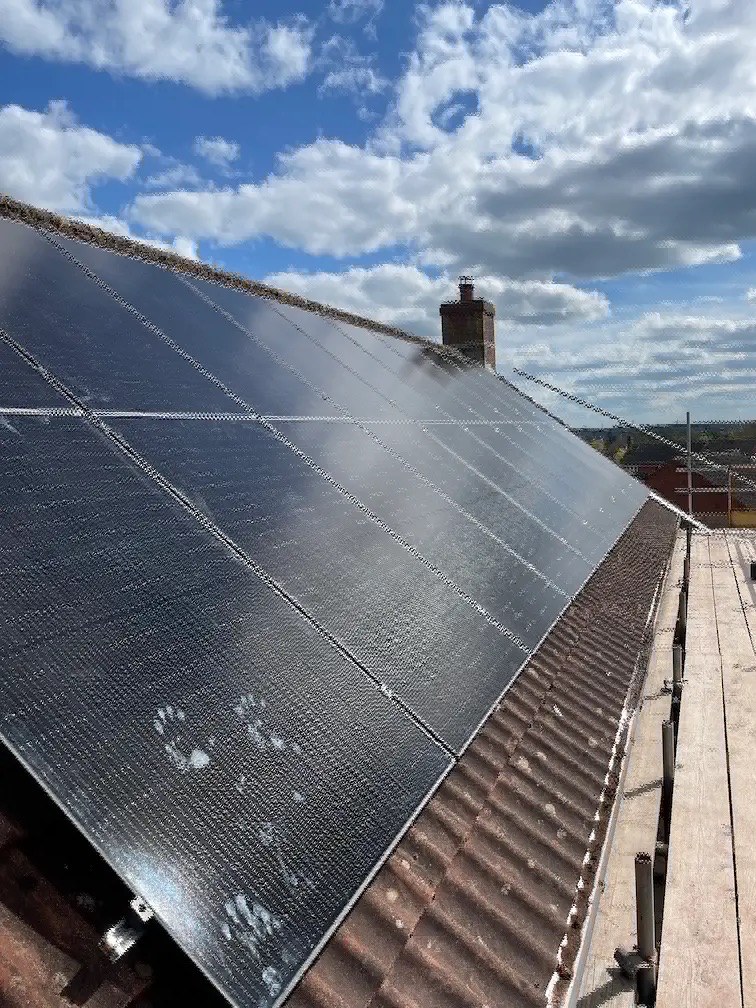

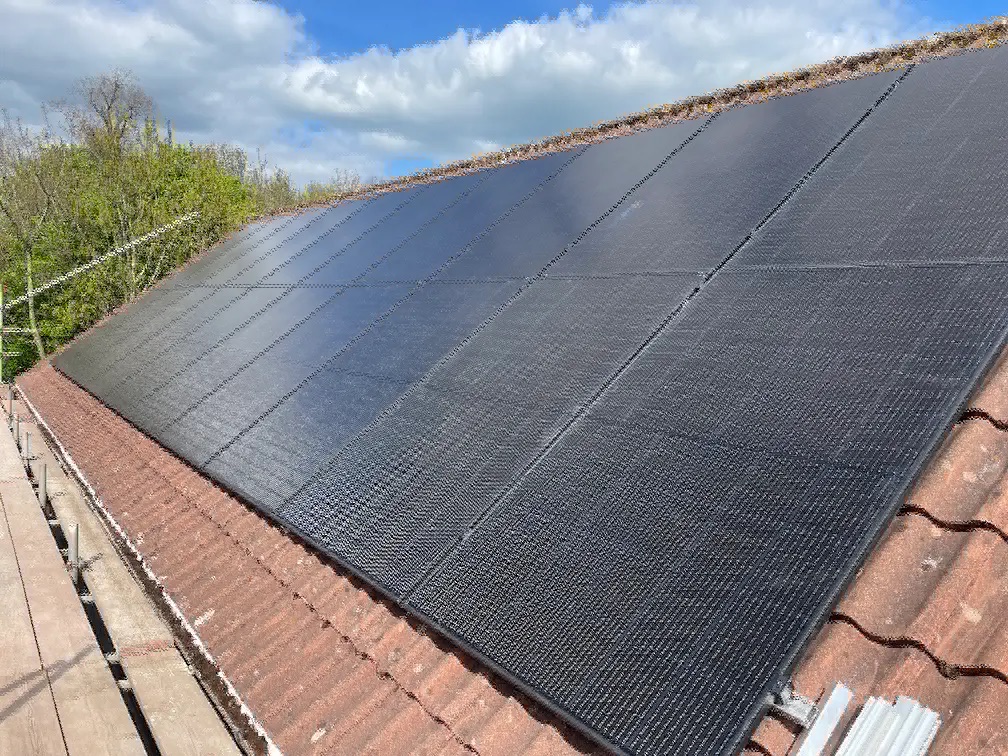

Yate 20 panels · 10kWh · 6kW hybrid Detached house · April 2023 Full job

Bristol 3.68kWp · 5kWh Libbi · Zappi Solar, battery and EV · Summer 2023 Full job

Nothing in that category yet. More going up as we finish them.
